Ako trazite idealan industrijski PC, za manje aplikacije jedna od preporuka je svakako i Micro Industrial PC VM23, koji se odlikuje i veoma malih dimenzija (116mmX107,2mmX30mm). Pogoni ga Intel-ov četvorojezgarni procesor Apollo Lake Celeron N3450. Najnovija Intel HD500 grafika nudi maksimalnu 4K/UHD rezoluciju na dva nezavisna monitora sa integrisanom DDR4 memorijom od 4Gb i eMMC diskom od 32GB.

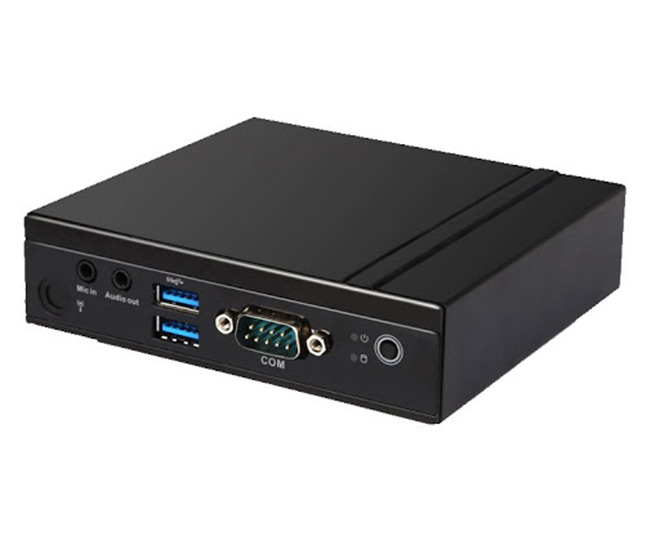

Micro INDUSTRIAL PC VM23 4GB RAM + eMMC 32GB
| VM23 | VM23-F1-N335031E5G-GIA / VM23-F1-N345032E5G-GIA | ||
| Processor | CPU | Intel® Celeron N3350 / Intel® Celeron N3450 | |
| Frequency | 1.10 GHz (Up to 2.40 GHz )，2 Core1.10 GHz (Up to 2.20 GHz )，4 Core | ||
| BIOS | AMI Source Code | ||
| Chipset | SOC | ||
| Memory | Type | DDR3L-1866MHz | |
| Socket | 2GB Onboard / 4GB Onboard | ||
| Max Size | 2GB / 4GB | ||
| Graphics | GPU | Intel® Gen9 Graphic engine | |
| Graphic Engine | DirectX 12.0, OpenGL 4.3, OpenCL 2.0 | ||
| DP | 1 x DP (Max.4096 x 2304@60Hz) | ||
| HDMI | 1 x HDMI (Max.3840 x 2160@30Hz) | ||
| Network | Controller | Realtek RTL8111H Gigabit Ethernet | |
| Interface | 1 x RJ45 | ||
| I/O | USB | 2x USB 3.0, 2x USB 2.0 | |
| Serial Port | 1 x RS232 | ||
| Audio | 1 x MIC-IN, 1 x AUDIO-OUT | ||
| Mini-PCIe | 1 x Full-size Mini-PCIe for mSATA | ||
| M.2 | 1 x M.2 (2230) for WiFi/BT | ||
| Storage | mSATA | 1 x Full-size mSATA | |
| eMMC | 32GB Onboard | ||
| JAHC Tech | WatchDog Timer | 0~255 Second Time Out Support | |
| Auto Power On | Power Activated Automatically Start | ||
| RTC | Set Up Independently Every day, A Week as a Cycle | ||
| Wake On Lan | Yes | ||
| Operation System | Windows | Windows 10(64-bit) | |
| Linux | Supported | ||
| Power | Power Type | DC-IN | |
| Input Voltage | 12V/2A | ||
| Mechanical | Dimensions (W × D × H) | 116.6mm x 107.4mm x 30mm(4.59″x4.23″x1.18″) | |
| Fanless | Yes | ||
| Construction | Metal | ||
| Mounting(Optional) | Desk/Wall Mounting and VESA Mounting Kit (JT NUC-JC530) | ||
| Color | Black | ||
| Environment | Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow | |
| Relative Humidity | 95%@40℃ (non-condensing) | ||
| Certification | Certification | CE, FCC Class B, CCC | |
| License | The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. | ||
